How to repair a broken side panel tab

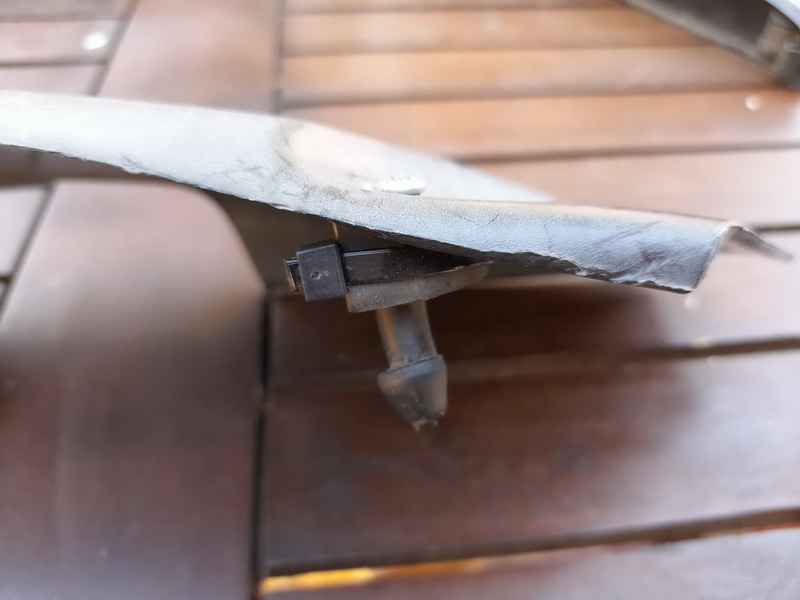

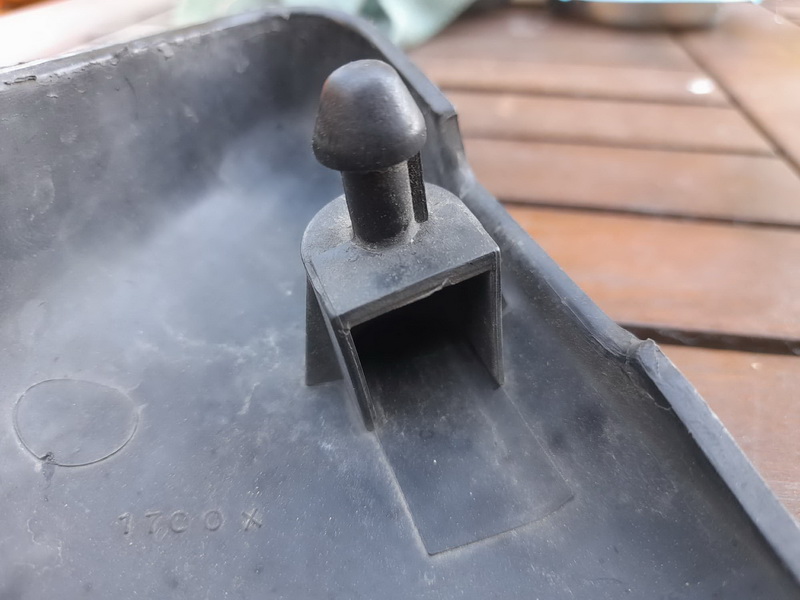

Quite often a tab of the side panel will break, when pulling the side panel, or when trying to push it back in position.
Being a very old part and quite rare to find, but also easily broken when working with it without love and compassion! Ohwell, did I mention it is 24 years old, too?!
What I actually did:

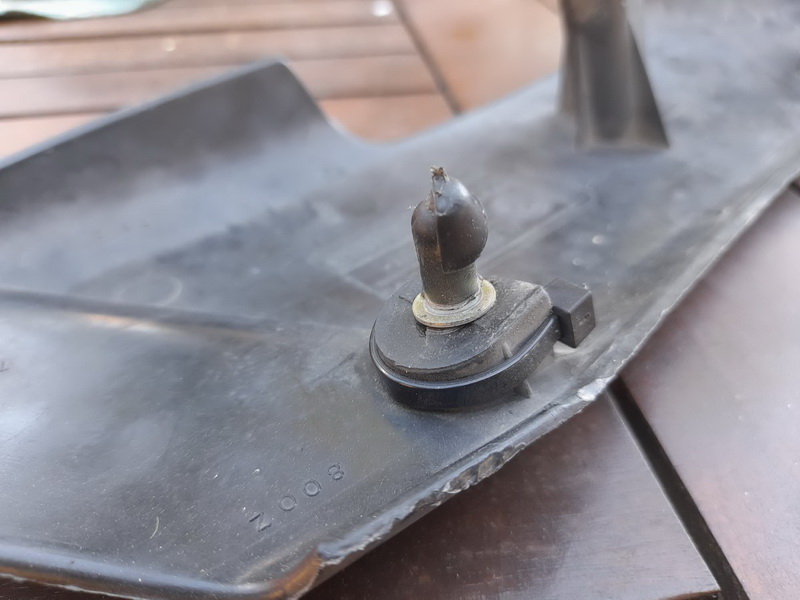

- I cut a small piece of hard rubber hose, like the one used in the fuel tank. I cut a cylinder of 8-9mm height.

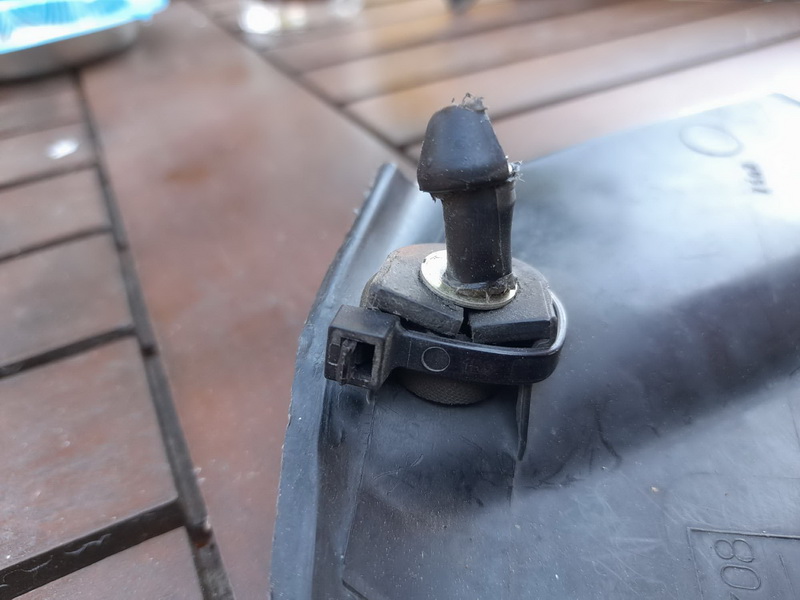

- I pushed it right below the tab's base. This base may be broken as well, so I used a tie-wrap around it to keep it as stable as possible.
- I drilled a 1.5mm hole through the bottom of the broken tab itself, so I can make the screwing easier. Make sure you don't exit on the other side!!!

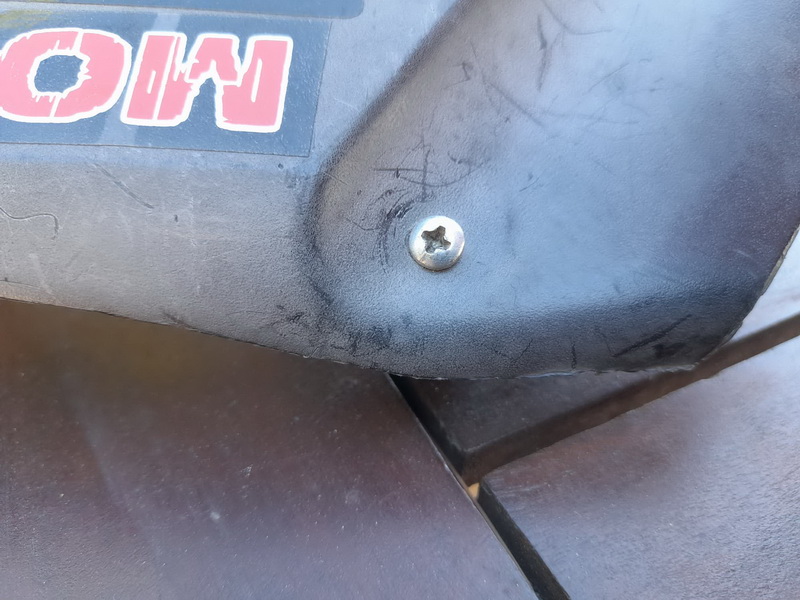

- What screwing? I used a 4X40 (metric) self tapping screw.
- It's keeping everything tight!
- Use washers also if you wish to maintain distances.
